What is a 150Ah 12.8V Battery?
A 150Ah 12.8V battery is a type of rechargeable battery, typically used in applications requiring high capacity and deep discharge cycles. The “150Ah” refers to its ampere-hour rating, which is a measure of how much current it can deliver over a period of time. The “12.8V” indicates its nominal voltage.
What’s the manufacturing Process of 150ah 12.8v battery?
The manufacturing process for 150Ah 12.8V batteries can vary depending on the specific technology used. However, most lithium-ion batteries, a common type used for this application, follow a general process:
- Material Preparation: Raw materials, including lithium compounds, graphite, and other conductive materials, are prepared and purified.
- Electrode Fabrication: The prepared materials are mixed with binders and conductive agents to form a slurry, which is then coated onto metal foils to create the positive and negative electrodes.
- Separator Production: A porous separator membrane is made to separate the electrodes while allowing the movement of ions.
- Cell Assembly: The electrodes, separator, and electrolyte (a lithium-ion conducting solution) are assembled into a pouch or cylindrical cell.
- Formation: The new cell is subjected to a series of charging and discharging cycles to activate the materials and stabilize its performance.
What’s Working Scenarios?
150Ah 12.8V batteries are commonly used in:
- Electric Vehicles (EVs): They provide the primary power source for propulsion.
- Energy Storage Systems (ESS): These batteries store excess energy from renewable sources like solar or wind power for later use.
- Off-Grid Power Systems: They can power homes, cabins, or other remote locations where grid connection is unavailable.
- Backup Power Systems: They serve as a backup power source for critical equipment or facilities.
- Industrial Applications: They are used in various industrial processes, such as forklifts, robotics, and machinery.
Key Advantages of 150Ah 12.8V Batteries:
- High Capacity: They can store a significant amount of energy.
- Deep Discharge Capability: They can be discharged to a low state of charge without damage.
- Long Cycle Life: They can withstand many charging and discharging cycles.
- High Efficiency: They have a high energy conversion efficiency.
- Lightweight: They are relatively lightweight compared to other battery technologies.
The manufacturing process of a 12V 150Ah LiFePO4 battery involves specific steps and utilizes a combination of series and parallel connections. Let’s explore the process and highlight the capabilities and strengths of ThinkedPow factory, along with the battery’s lifespan and suitable applications.
The production of a 12V 150Ah LiFePO4 battery starts with the assembly of individual LiFePO4 battery cells. These cells are typically cylindrical or prismatic in shape and contain the necessary components for energy storage. ThinkedPow factory ensures the use of high-quality cells that meet industry standards and undergo rigorous quality control checks.
To create a 12V 150Ah LiFePO4 battery, multiple cells are connected in both series and parallel configurations. In series connections, the positive terminal of one cell is connected to the negative terminal of the next cell, effectively adding up the voltage of each cell. Parallel connections involve connecting the positive terminals of multiple cells together and the negative terminals together, increasing the overall capacity of the battery.
ThinkedPow factory employs skilled technicians and advanced equipment to ensure precise and reliable connections during the assembly process. They have expertise in optimizing the series and parallel combinations to achieve the desired voltage and capacity specifications for the 12V 150Ah LiFePO4 battery.
One of the notable strengths of ThinkedPow factory is their commitment to quality and performance. They prioritize using high-grade LiFePO4 cells, ensuring the battery’s durability and long lifespan. LiFePO4 chemistry is known for its excellent cycle life, and the 12V 150Ah LiFePO4 battery manufactured by ThinkedPow can withstand a high number of charge-discharge cycles. This contributes to its extended lifespan and reduces the need for frequent replacements.
The 12V 150Ah LiFePO4 battery is well-suited for a range of applications. Its high capacity makes it suitable for applications requiring a reliable and long-lasting power source. It can be used in renewable energy storage systems, providing a stable supply of electricity from solar or wind sources. Electric vehicles can benefit from the battery’s high energy density and long cycle life, enabling extended driving ranges and efficient performance.
Marine applications, such as electric boats or yachts, can rely on the 12V 150Ah LiFePO4 battery for efficient and safe power storage. Its resistance to thermal runaway and low risk of explosions make it a secure choice for marine environments.
Additionally, the battery can be utilized in off-grid power solutions, where it can store energy for use in remote locations or during power outages. Its wide operating temperature range ensures reliable performance in diverse climates.
In summary, ThinkedPow factory excels in the manufacturing of 12V 150Ah LiFePO4 batteries. Their skilled technicians and advanced equipment enable precise series and parallel connections, resulting in a high-quality and durable battery. With its long lifespan, high energy density, and safety features, the battery is well-suited for renewable energy storage, electric vehicles, marine applications, and off-grid power solutions. Its versatility and reliability make it a preferred choice for various demanding scenarios.

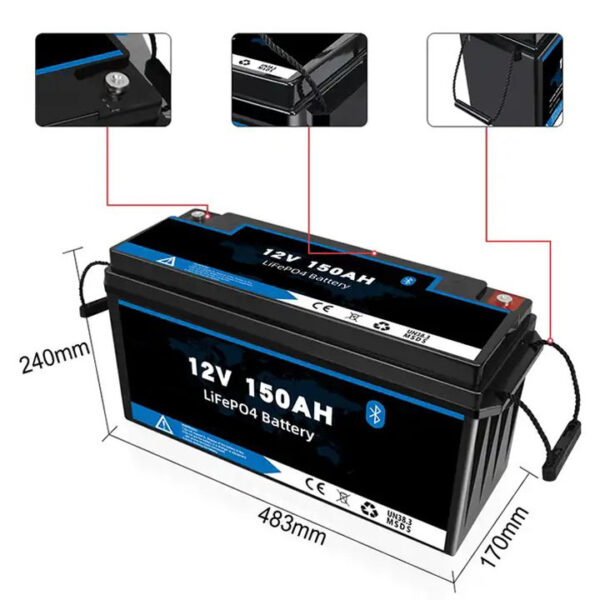

12V 150Ah LiFePO4 Battery Specification Datasheet
| Item | General Parameters |
| Rated Capacity | (Typ.) 150Ah |
| (Min.) 150Ah | |
| Nominal Voltage | 12.8V |
| End of Charge Voltage | 14.6V |
| Charge mode | CC ，CV |
| Charging cut- off current | 0.02C |
| Charging time | 3-5h |
| Over- Charge Voltage Protection (cell) | 3.65V |
| Max continuous charge current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Over- discharge Voltage Protection (cell) | 2.70V |
| Short circuit protection | Yes, with BMS Protection |
| Short circuit protection Release | Disconnect the load |
| Cell Dimension (L*W*H) | 415*170*300mm |
| Weight | ≈11±0.3Kg |
| Operation Temperature Range | Charge ：0~45℃ |
| Discharge ：- 10~60℃ | |
| Storage Temperature Range | 1 month ： -20℃ ~ 45℃ |
| 3 months： -20℃ ~ 45℃ | |
| 1 year ： -20℃ ~ 25℃ | |
| Cycle Life | 1. Charge: 50A to 14.6V |
| 2 . Constant voltage to 0.02C Rest time : 10 min 3. Discharge: 50A to 10.8V 4 . Rest Time between Charge and Discharge: 10min |
|
| 5. Temperature: 25±5℃ | |
| Battery Case | ABS Case |
| Charge and discharge port | Shared/ Customized |
| Cooling Method | Natural Cooling |
| Charge and discharge wire length | Customized |
BMS Protection System
– Over-charge protection
– Over-discharge protection
– Over-current protection
– Short circuit protection
– Temperature detection protection
– Balance function
– Bluetooth function
12.8V Production materials in factory
